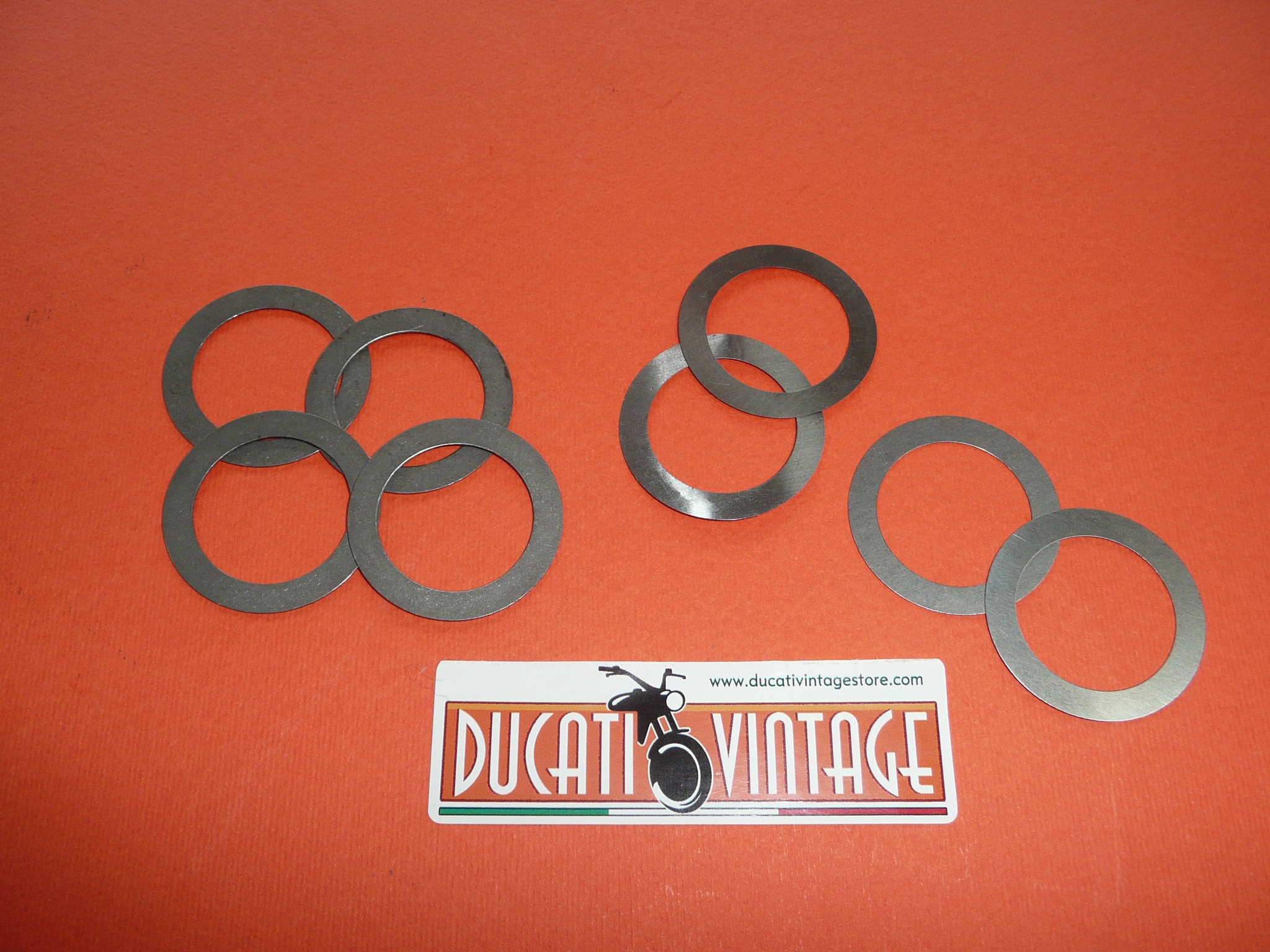

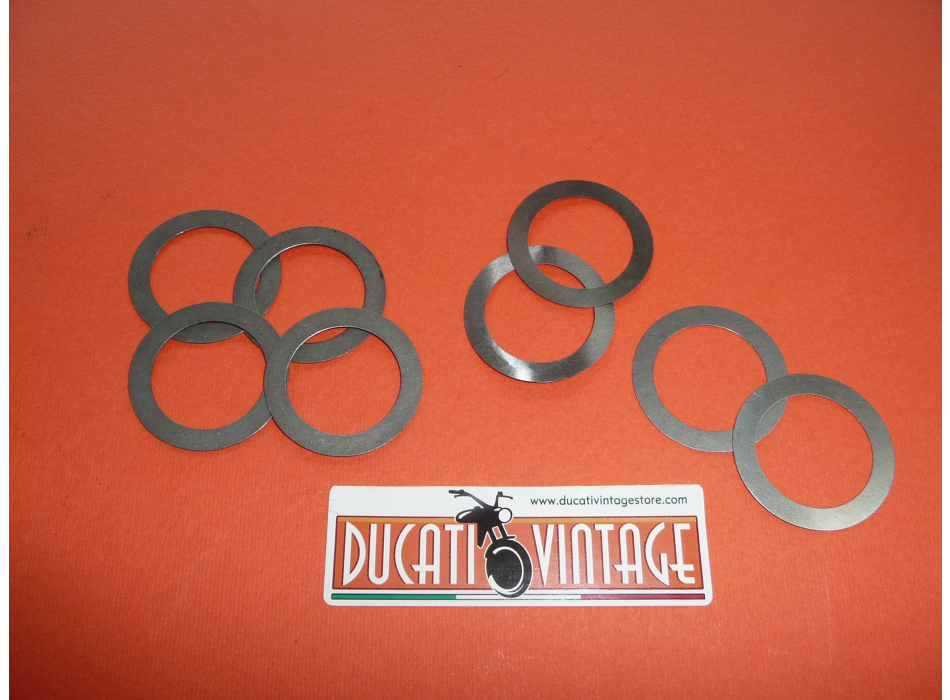

Lower bevel gear bearing adjustment shim kit – Ducati 250, 350 and 450 cc wide-case single-cylinder engines
Shim washer kit for adjustment and setting of the lower bevel gear bearing assembly.
Manufactured as a functional replacement for the original Ducati shims with the following part numbers:
0400.29.090 – Original shim 29.2 × 35 × 0.1 mm
0181.40.060 – Original shim 29.2 × 35 × 0.2 mm
0181.40.070 – Original shim 29.2 × 35 × 0.5 mm
Our replacement shims feature a reduced internal diameter of 25 mm, while retaining the original 35 mm external diameter and original thicknesses.
The reduced internal diameter does not affect their function: the shaft passes through the central hole without making contact with the shim. The bearing contact surface therefore remains unchanged, with an even larger effective bearing surface compared to the original shim.
This version has been supplied by Ducati Vintage Store for almost 10 years, with no functional problems reported.
Package contents:
4 pcs Ø 25 × 35 × 0.1 mm
2 pcs Ø 25 × 35 × 0.2 mm
2 pcs Ø 25 × 35 × 0.5 mm
Applications:
For Ducati 250, 350 and 450 cc wide-case single-cylinder engines:
Ducati Scrambler 1st and 2nd series
Ducati Mark 3
Ducati RT
Ducati Desmo Yellow
Ducati Desmo Silver Shotgun
Made in Italy.
